DMX512 14PCS * 8W LED Par 4 In 1 Full Color IP65 Par Lighting For Out Door

DMX512 14PCS * 8W LED Par 4 In 1 Full Color IP65 Par Lighting For Out Door

Technical Specifications

Voltage: AC110-240V 50Hz/60Hz

Lamp: 14*18W (4 in 1 full color LED) /112W

Control Mode: DMX512, master/ slave (digital display)

Channel: 8CHS

Main Functions: 6 menu modes (dimmer, strobe, auto-run, mixed color, single color)

Beam Angle: 30 degree

Rated Power: 125W

Waterproof Rating: IP65

DMX512 function(8 channels)

CH1——General dimming (0-255)

CH2——Red dimming (0-255)

CH3——Green dimming (0-255)

CH4——Blue dimming (0-255)

CH5——White dimming (0-255)

CH6——Strobe, (0-7)light off; (8-250)Strobe: from slow to fast;(251-255)light on

CH7——mixed program inside(0-95)no reaction;(96-127) 7-color change gradually；(128-159)3 color change jumpily；(160-191)3 color strobe change jumpily;(192-255)7 color change jumpily.

CH8——mixed speed-controlled (0-255)

Note

AC110-240V input, the maximum quantity are 8PCS for the light power series connection. For signal series connection, the maximum quantity recommend are 30PCS (If need series connection more quantity, please use signal amplifier)

The effect picture

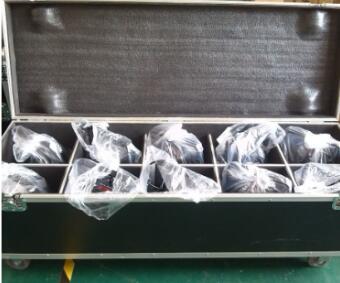

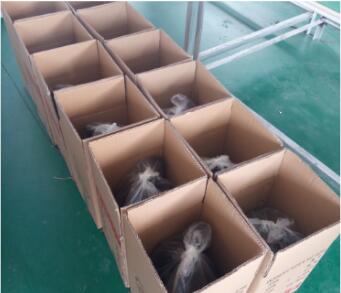

The packing
